• 3/16” thick face channel
• 1” slotted on center for maximum flexibility

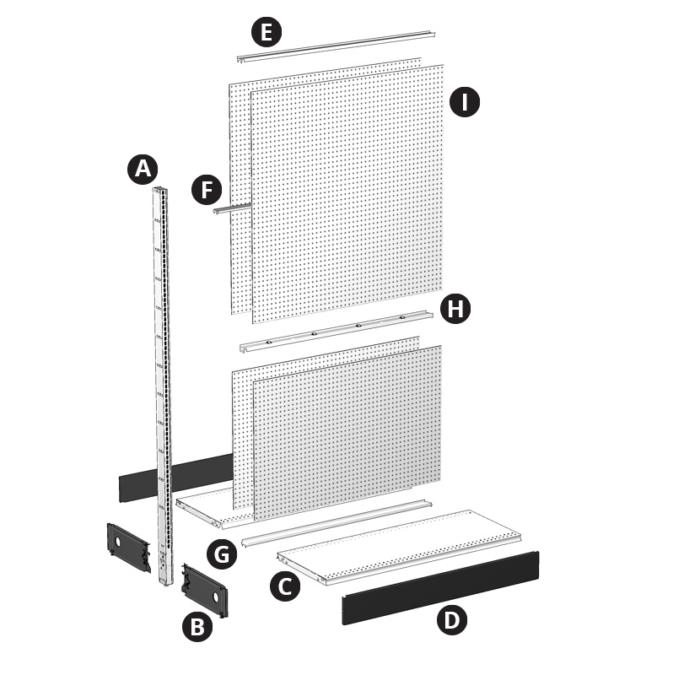

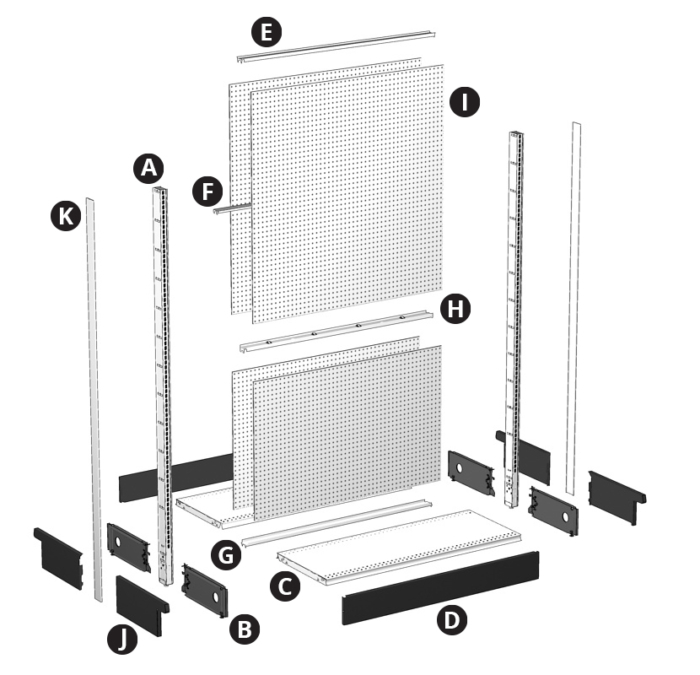

• Use for Wall and Island Sections
• Steel welded construction
• Includes side flanges to retain Back material, leveling leg for uneven floors
• Includes Top Caps on Uprites 36”-66”H

• Features 2” conduit hole for greater electrical access
• Includes leveling legs for uneven flooring
• Install straight in using integral spring latch
• 28″ deep and 31″ deep base brackets are only Heavy Duty.  There are no Standard Duty 28″ deep or 31″ deep base brackets.

NOTE
Actual Bracket length is 3″ less than nominal Deck depth. Order CHR Base Brackets when using Open Base Fronts. (This is done automatically when section/end part numbers are ordered with OBF’s.)

• Standard Deck style for Island and Wall runs
• Molding accommodates a 1.235” tag
• 1/4” perforations for clip-on accessories
• Evenly distributed load of 600 lbs (13″-19″D) and 800 lbs (22″-31″D)

• Reinforced tag area reduces deflection at front of deck
• All other features are identical to a SD Style Deck
• Evenly distributed load of 600 lbs (13″-19″D) and 800 lbs (22″-31″D)

• 3’ and 4’ Fronts have an electrical knockout
• Snaps in place beneath Deck to cover gap between Deck and floor
• Fits flush with floor regardless of leveling adjustments

• Use Open Base Front instead of Closed Base Front
• Order CHR Base Brackets when using Open Base Front

• All Island and Wall Sections require one Top, Center and Bottom Rail
• 2’ and 30” sections use two Top Rails to make a Splicer Rail
• Electrical knockouts included on all Rails

• All Island and Wall Sections require one Top, Center and Bottom Rail
• 96”H-144”H Backs require two Center Rails
• Center Rail finish is always N/A because it’s hidden
• Electrical knockouts included on all Rails

• All Island and Wall Sections require one Top, Center and Bottom Rail
• 78”H – 144”H Backs require one Splicer Rail
• Splicer rail is not available in 2’ or 30”
• Use two top rails for splicer rail on 2′ and 30″ wide sections.
• Electrical knockouts included on all Rails

• All Island and Wall Sections require one Top, Center and Bottom Rail
• Electrical knockouts included on all Rails
• Also used for 2′ and 30″ Slotwall Backs

• Use one-piece Backs for heights 36”-72”
• For heights above 72” order 2 backs, see table below
• Pegboard 9/32” diameter holes, 1” on center
• To order the correct size Back, take Uprite height minus 6

• Attaches to the first and last Base Bracket in a run
• Comes in a pair
• One pair is required to finish a Wall run
• Two pairs are required to finish an Island run
