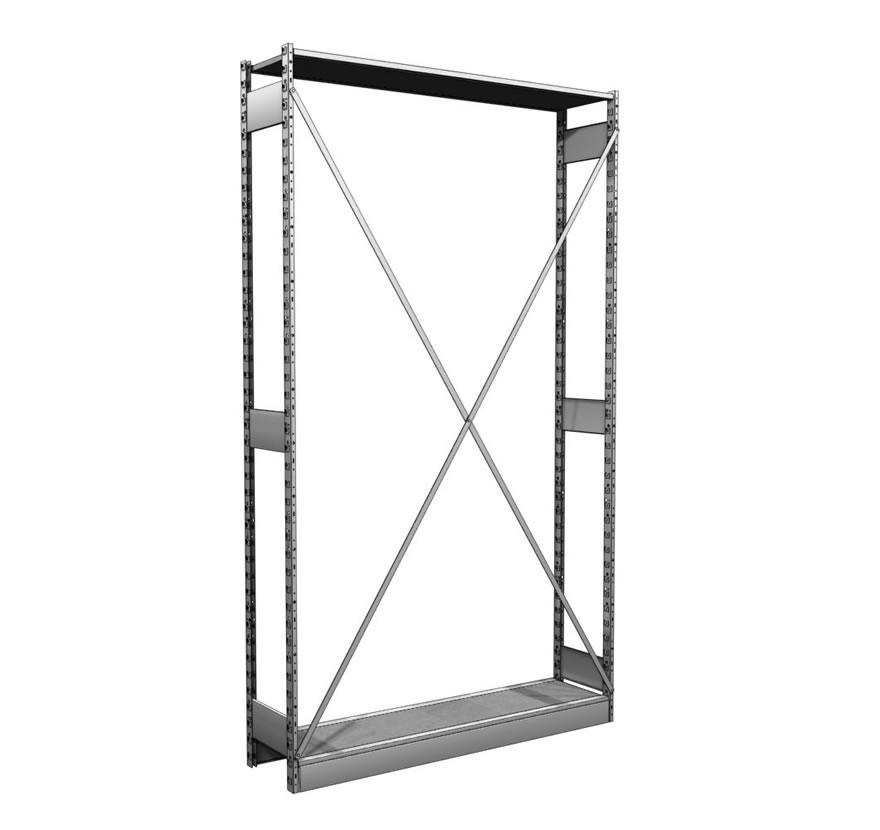

S-Series Storage Crossbrace

Part Number: SSX

S-Series Storage Crossbrace

Part Number: SSX

Product Details

  • S-Series Storage Sections must be stabilized with either Crossbraces or Back Panels

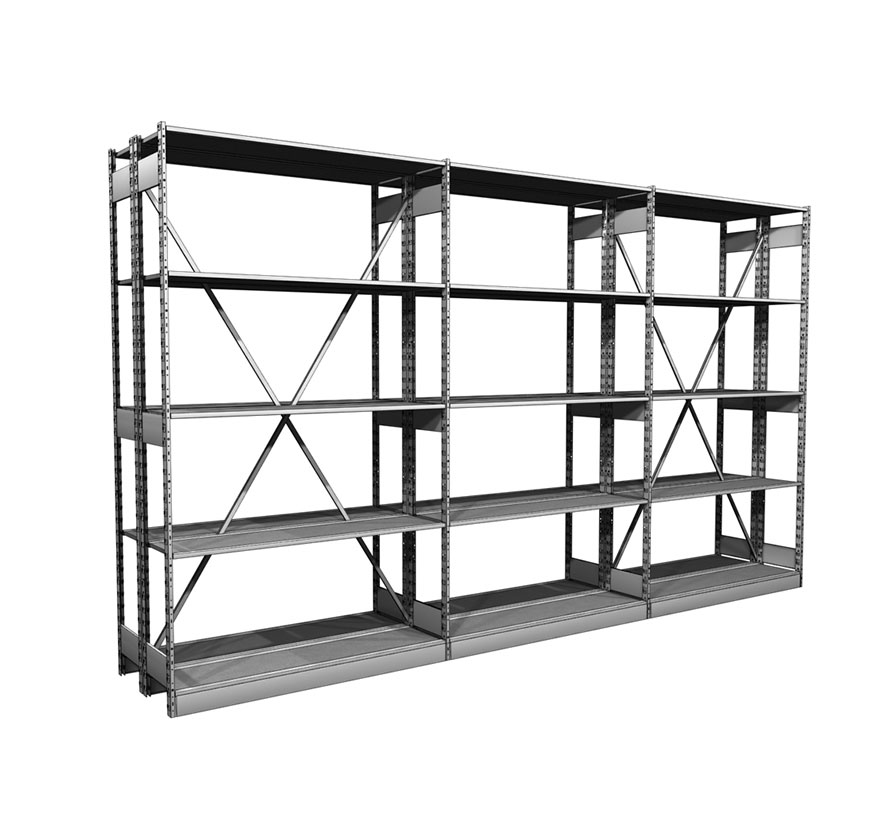

  • Crossbraces (or Back Panels) are required on end sections of each run and every fourth section in between for stabilization
  • See diagram below for minimum recommended placement of Crossbraces per run
  • Back-to-back runs can share Crossbraces if Uprites are securely connected with S-Series Storage Screws (#SS2221)
  • If section height is over 96″, the part number below includes two sets of Crossbraces for the section (one lower and one upper Crossbrace)



crossbrace diagram


Product Options and Numbers

Example Part #:   SSX   4   48   R   GLV


S-Series Crossbrace: SSX

Section Width: 3′, 4′

Section Height: 36″, 48″, 60″, 72″, 84″, 96″, 108″, 120″, 144″

Bracing Type: R, H

Standard Finish: GLV

Suffix Key
R – Regular Duty Crossbrace
H – Heavy Duty Crossbrace
GLV – Galvanized
