S-Series Storage Shelving

Part Numbers: SSU_, SSX_, SS_, SSBP_

S Series Storage Shelving features integrated wood and steel construction for strength and economy. Shelves come pre-assembled for ease of installation and includes all-steel Uprites, one-piece Shelves and Crossbraces.

S-Series Storage Shelving

Part Numbers: SSU_, SSX_, SS_, SSBP_

S Series Storage Shelving features integrated wood and steel construction for strength and economy. Shelves come pre-assembled for ease of installation and includes all-steel Uprites, one-piece Shelves and Crossbraces.

  • Image of 3 sections of S-Series Storage shelving utilizing 2 Crossbraces.

Roll over image to zoom in.

Contact to Order
Download PDF Print Installation Instructions 2D Fixture CAD Blocks 3D Fixture CAD Blocks

Product Details

  • Integrated wood and steel construction for strength and economy
  • Pre-assembled all steel Uprites, one-piece Shelves, and Crossbraces for easy installation (Open Uprite Pat. # 6,085,918)
  • Particleboard Shelves are reinforced with steel channels front and back
  • Standard Finish: GLV (Galvanized) unless otherwise noted



SIZE INFORMATION

  • Clear opening between posts: nominal shelf width minus 1 1/4”
  • Overall length of continuous run: the sum of the nominal section widths plus 1 1/4” to account for end posts
  • Overall depth equals the nominal depth
  • Vertical clearance between shelves equals the center-to-center shelf spacing minus 3/4”
  • Vertical adjustment 2” on centers



CAPACITY PER SHELVING SECTION

Vertical Shelf Spacing Regular Duty (XR) Crossbraces Heavy Duty (XH) Crossbraces or Back Panel
< 24″ 1,200 lbs 3,000 lbs
24″ – 36″ 1,200 lbs 2,500 lbs
 36″ – 48″ 1,200 lbs 2,000 lbs
 48″ – 60″ 1,200 lbs 1,500 lbs
 > 60″ Not recommended Not recommended


NOTE: Shelving Sections loaded beyond 1,200 lbs require Heavy Duty Crossbraces or Back Panel.

How to Order

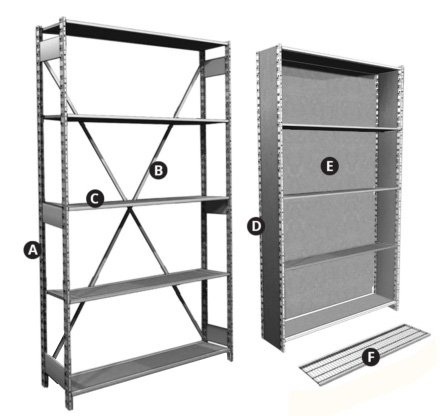

Industrial-Shelving-S-Series-Sections-Labeled4

COMPONENTS (ORDER SEPARATELY):

A – S-Series Storage Shelving Uprite Assembly, Open #SSU__N (one Uprite required per section + one at end)
B – S-Series Crossbrace #SSX (refer to diagram below to determine minimum quantity and placement)
C – S-Series Storage Shelf #SS (optional – quantity may vary)
D – S-Series Storage Shelving Uprite Assembly, Closed #SSU__P (one Uprite required per section + one at end)
E – S-Series Back Panel #SSBP (refer to diagram below to determine minimum quantity and placement)
F – S-Series Storage Shelf, Wire Grid #SS__WG (optional)

STABILIZATION REQUIREMENTS DIAGRAM

S-Series Storage Shelving Uprite Assembly

Product Details

  • Made of galvanized steel posts
  • Two Styles: Open and Closed Uprites
  • Open Uprite has galvanized steel Uprite braces (Pat. # 6,085,918)
  • Closed Uprite has 5/8” unfinished particleboard panel between two steel Uprite posts
  • Shelf lances are 2” on center
  • One assembly required for each section and at the end of each run



View product details

Product Options and Numbers

Example Part #:   SSU   12   048   N   GLV



S-Series Storage Uprite Assembly: SSU

Section Depth: 12″, 18″, 24″, 30″

Section Height: 048″, 060″, 072″, 084″, 096″, 108″, 120″, 144″

Uprite Style: N, P

Standard Finish: GLV

Suffix Key
N – Open Uprite Style
P – Closed Uprite Style
GLV – Galvanized

S-Series Storage Crossbrace

Product Details

  • S-Series Storage Sections must be stabilized with either Crossbraces or Back Panels
  • Crossbraces (or Back Panels) are required on end sections of each run and every fourth section in between for stabilization
  • See diagram below for minimum recommended placement of Crossbraces per run
  • Back-to-back runs can share Crossbraces if Uprites are securely connected with S-Series Storage Screws (#SS2221)
  • If the section height is over 96″, two sets of Crossbraces are required for the section (one lower and one upper Crossbrace – see tables below)



MINIMUM BRACING REQUIREMENTS DIAGRAM

crossbrace diagram



Table showing Crossbrace requirements for each size of S-Series uprite

View product details

Product Options and Numbers

Example Part #:   SSX   4   72   RD   GLV



S-Series Crossbrace: SSX

Section Width: 3′, 4′

Crossbrace Height: 36″, 72″

Crossbrace Type: RD, HD (72″H only)

Standard Finish: GLV

Suffix Key
RD – Regular Duty Crossbrace
HD – Heavy Duty Crossbrace
GLV – Galvanized

S-Series Storage Shelves

Product Details

  • Pre-assembled, no loose hardware needed
  • Easy to install and reposition, adjusts in 2″ vertical increments



PARTICLEBOARD S-SERIES STORAGE SHELF

  • 5/8″ industrial grade particleboard
  • Regular Duty reinforced with 3/4″D x 3/4″H galvanized steel channels
  • Heavy Duty reinforced with 1 1/4″D x 3/4″H galvanized steel channels
  • Regular Duty – Evenly distributed load of 500 lbs per Shelf
  • Heavy Duty – Evenly distributed load of 600 lbs per Shelf



WIRE GRID S-SERIES STORAGE SHELF

  • 1″ x 6″ Wire Grid
  • Reinforced 1 1/4″D x 3/4″H galvanized steel channel
  • Provides for light penetration, water flow through for sprinklers and cleanliness
  • Evenly distributed load of 500 lbs per Shelf
View product details

Product Options and Numbers

Example Part #:   SS   4   12   R   GLV



S-Series Storage Shelf: SS

Section Width: 3′, 4′

Shelf Depth: 12″, 18″, 24″, 30″

Shelf Type: R, H, WG

Standard Finish: GLV

Suffix Key
R – Regular Duty Shelf
H – Heavy Duty Shelf
WG  – Wire Grid
GLV – Galvanized

S-Series Storage Shelving Back Panels

Product Details

  • 1/8″ Hardboard, unfinished
  • 108″ – 144″ Backs are two-pieces joined with a Splicer
  • Notched to accept Back-to-Back Connectors
  • Can use on back of each section to create a closed or “closet” section
  • Back Panels (or Crossbraces) are required on ends of each run and every fourth section in between for stabilization
  • See diagram below for minimum recommended placement of Back Panels per run
  • Components include Back Panel(s), Screws, Washers and Splicer (ordered separately)



MINIMUM BRACING REQUIREMENTS DIAGRAM

crossbrace diagram



















View product details

Product Options and Numbers

Back Panel component requirements vary by Section Height. See chart below to determine part numbers and quantities needed for each section.

 BACK PANEL COMPONENTS BY SECTION HEIGHT
 SECTION HEIGHT
 36″W SECTION BACK PANEL QTY 48″W SECTION BACK PANEL QTY WASHER  (SS1511 N/A) QTY SCREW  (SS2221 N/A) QTY SPLICER  (SS1151 XB1) QTY
36″ 1 (SSBP36036) 1 (SSBP48036) 4 4 –
48″ 1 (SSBP36048) 1 (SSBP48048) 4 4 –
60″ 1 (SSBP36060) 1 (SSBP48060) 6 6 –
72″ 1 (SSBP36072) 1 (SSBP48072) 8 8 –
84″ 1 (SSBP36084) 1 (SSBP48084) 8 8 –
96″ 1 (SSBP36096) 1 (SSBP48096) 8 8 –
108″ 1 (SSBP36084) + 1 (SSEBP36024) 1 (SSBP48084) + 1 (SSEBP48024) 12 12 1
120″ 1 (SSBP36084) + 1 (SSEBP36036) 1 (SSBP48084) + 1 (SSEBP48036) 12 12 1
144″ 1 (SSBP36072) + 1 (SSEBP36072) 1 (SSBP48072) + 1 (SSEBP48072) 16 16 1



Back Panel Standard Finish: N/A (no finish)
