MenuEnd Cap with End Display Wings
Contoured End Display featuring Contoured End Display Wings

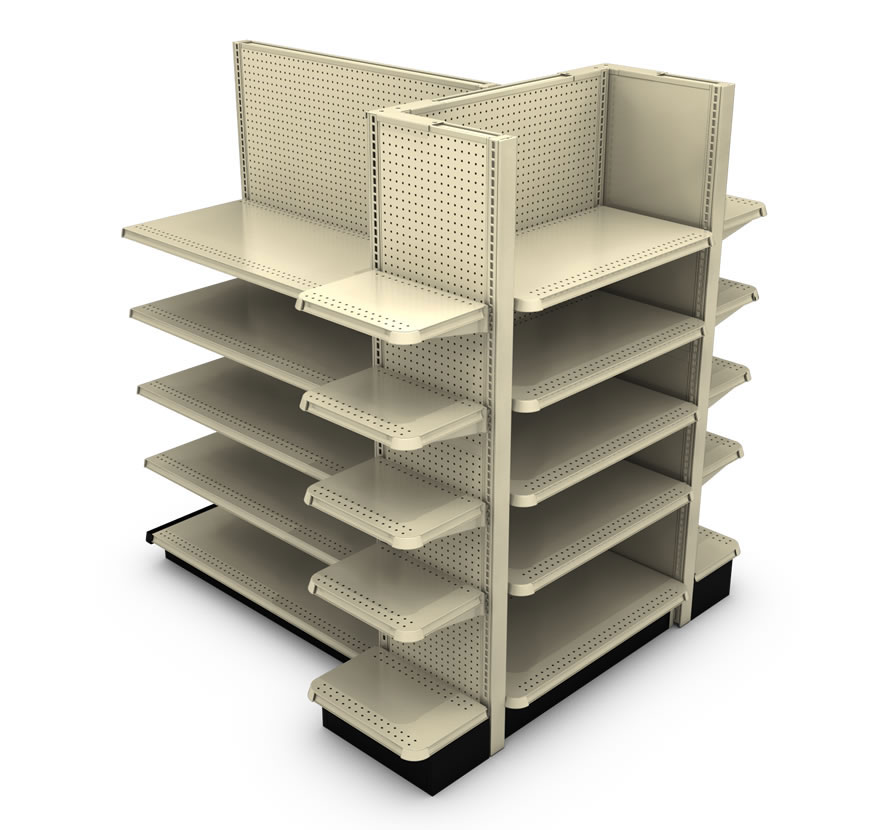

End Cap with End Display Wings
Contoured End Display featuring Contoured End Display Wings
Roll over image to zoom in.
Contoured End Display
Product Details
Load Rating
- 600 lbs evenly distributed per deck (13″ – 19″ D)
- 800 lbs evenly distributed per deck (22 – 25″ D)
- Same as Wall End Display except includes Contoured End Decks and Contoured Base End Trims.
- Contoured Shelves also available (ordered separately)
- Order Gap Filler to close off the bottom rear when unit is wider than the island width.
- Actual width of unit equals nominal width plus 2″
- Accepts Accessory Panels and connectors

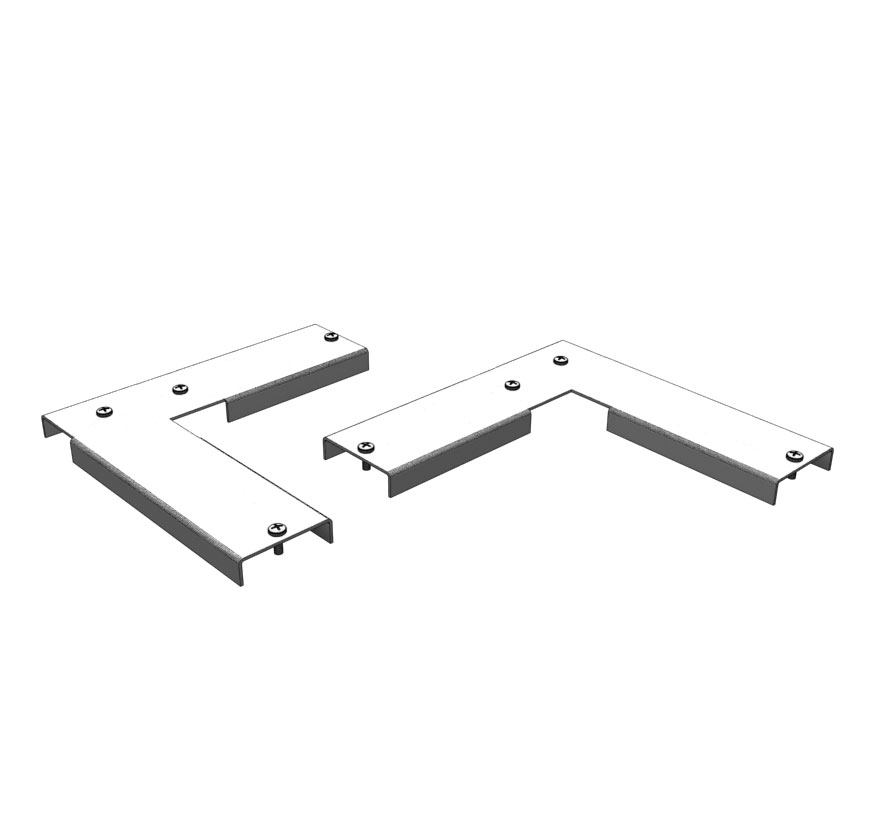

- Stabilizers required and ordered separately for Non-Compliant height to depth Contoured End Displays (See Product Safety information for Height to Depth Chart)
- Contour decks and shelves with only one round corner available for two section displays.
Product Options and Numbers
| CONTOURED END DISPLAY – SIZES | |||||||||
| Depth | Height | ||||||||
| 48″ | 54″ | 60″ | 66″ | 72″ | 78″ | 84″ | 90″ | 96″ | |
| 13″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | ||
| 16″ |
N/A | N/A | N/A | N/A | |||||
| 19″ | N/A | ||||||||
| 22″ | |||||||||
| 25″ | |||||||||
Contoured End Shelves
Product Details
- Features rounded corners
- 1.235″ Tag Molding formed on three sides
- Will not accommodate Wire Fronts
- Evenly distributed load of 300 lbs per Shelf
- Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)
View product details
Contoured End Deck
Product Details
- Features rounded corners
- 1.235″ Tag Molding formed on three sides
- Will not accommodate Wire Fronts
- Evenly distributed load of 600 lbs per Deck
- Available in Standard (rounded corners both sides) or LH and RH (rounded corner one side only)
View product details
