MenuMulti-Function System
Add Multi-Function components to your existing wall or island Gondola Shelving to increase capacity or to change the look of your display.
Multi-Function System
Add Multi-Function components to your existing wall or island Gondola Shelving to increase capacity or to change the look of your display.
Roll over image to zoom in.
Product Details
- Attaches to new or existing Gondola Shelving runs
- Designed for hand loading only
ORDERING INSTRUCTIONS
Add to Gondola island and wall sections as follows:
- Determine height of island/wall Uprites and depth of Base Decks.
- Order one set of Multi-Function Uprite components (Uprite, Uprite Brace, and Uprite Deck Connector) per desired Multi-Function Shelving Section, plus one set for the end; repeat for other side of section.
- Order Multi-Function Shelf components (Shelf, Back Beam, Front Beam, and Shelf Supports) as required. Shelf depth is same as Base Deck depth.
- Order optional Multi-Function Deck components (Particleboard Deck and Front Beam), if desired. Particleboard Deck rests on top of Steel Gondola Shelving Deck.
How to Order
WARNING: Multi-Function Beams are intended to be used with Multi-Function Shelf Supports. If Shelf Supports are not installed then the beams MUST utilize a Widespan Multi-Function Beam Locking Clip (WS1291 or WS9111) depending on the beam location. Failure to do this could allow the Beam to become disengaged causing product damage or personal injury.

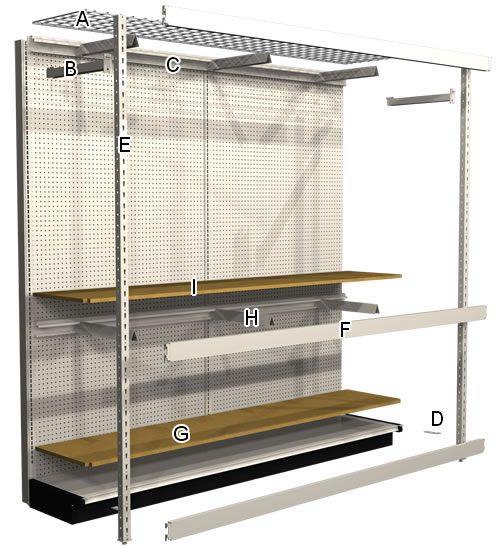

COMPONENTS
A – Wire Grid Shelf
B – Uprite Brace
C – Back Beam
D – Uprite Deck Connector
E – Multi-Function Uprite
F – Front Beam
G – Particleboard Deck
H – Shelf Support
I – Particleboard Shelf
