Widespan Tire Rack

This display for auto tires utilizes Widespan components.

Widespan Tire Rack

This display for auto tires utilizes Widespan components.

WideSpan Tire Rack
  • WideSpan Tire Rack

Roll over image to zoom in.

Contact to Order
Download PDF Print Email

Product Details

  • 96 1/2” clearance between Uprite posts if using WSB96 (8′ Beam)
  • Beam Locking Clips required
  • One Shelf Support is required to tie beams together

WARNING: Shelving must be anchored to a suitable building wall, to the floor, or otherwise braced to prevent overturning when merchandising tall or heavy items which lean against the shelving. The weight and force of leaning items on unanchored or unbraced shelving may cause the shelving to overturn or collapse.

How to Order

WideSpan-Tire-Rack-Labeled

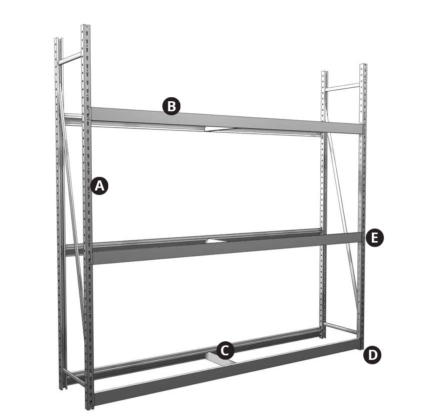

COMPONENTS (ORDER SEPARATELY)

A – Uprite Frame #WSU_ (two required)
B – Beam #WSB_ (six required)
C – Shelf Support #WSSS_ (three required)
D (not pictured) – Floor Anchor #WS1241 GLV (optional)
E – Beam Locking Clip #WS1291 STS (two required per beam)

Widespan Uprite Frame (One-Piece 48"H - 120"H)

Product Details

  • One-piece Uprite Frames for units 48” – 120”
  • Uprite post slotted on face, allows shelf adjustment 2” on center
  • Square holes punched on sides of Uprite post for accessories
  • Accessory holes punched 6” on center on face of Uprite also aid beam placement
  • Top Caps included on each Uprite
  • One Frame required for each section, plus one at end of each run
  • To provide increased protection under harsh shipping conditions add “SPC” to part number for additional packaging
  • Floor Anchors, Floor Protectors, or Back to Back Connectors may be ordered separately
  • Evenly distributed load of 10,000 lbs per Uprite Frame at 48″ max. Beam spacing, vertically



REINFORCED UPRITE FRAME

  • “RE” Frame available in 72” – 120”H and all depths (lower Frame only on 132” – 192”)
  • For use with hand loader/stacker
  • Reduces chance of Frame damage
  • Channel welded inside each post in lower 48”
  • Welded foot plate for anchoring, 1/2” hole



widespan reinforced uprite frame

Save

View product details

Product Options and Numbers

Example Part #:   WSU   18    048   RE   SPC   PLT



Widespan Uprite : WSU

Depth: 18”, 24”, 30”, 36”, 42”, 48”

Height: 048”, 060”, 072”, 084”, 096”, 120”

Reinforced Uprite for Hand Loader/ Stacker Applications: RE, Leave blank if not applicable

Additional Packaging: SPC, Leave blank if not applicable

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT -Platinum

Widespan Two-Piece Uprite Frame (Taller than 120")

Product Details

  • Uprite post slotted on face, allows shelf adjustment 2” on center
  • Square holes punched on sides of Uprite post for accessories
  • Accessory holes punched 6” on center on face of Uprite also aid beam placement
  • Top Caps included on each Uprite
  • One Widespan Uprite Frame required for each section, plus one at end of each run
  • To provide increased protection under harsh shipping conditions add “SPC” to part number for additional packaging
  • Floor Anchors, Floor Protectors, or Back to Back Connectors may be ordered separately
  • Two-piece Widespan Uprite Frame provides same rated load as One-Piece Widespan Uprite
  • Evenly distributed load of 10,000 lbs per Uprite Frame at 48″ max. Beam spacing, vertically



REINFORCED UPRITE FRAME

  • “RE” Frame available in 72” – 120”H and all depths (lower Frame only on 132” – 192”)
  • For use with hand loader/stacker
  • Reduces chance of Frame damage
  • Channel welded inside each post in lower 48”
  • Welded foot plate for anchoring, 1/2” hole



widespan reinforced uprite frame

Save

View product details

Product Options and Numbers

Widespan-Two-Piece-Uprite-Exploded-Labeled-Lozier

COMPONENTS (ORDER SEPARATELY):

A – Widespan Uprite Frame, Reinforced, #WSU_RE (1 required)
B – Widespan Uprite Connectors, #WSUC (2 required)
C – Widespan Frame, #WSU_ (1 required)

Widespan Beam

Product Details

  • Available in both Heavy Duty and Regular Duty
  • Integral Beam connectors
  • Tilt-in design, no fasteners or locking clips required when used with Shelf Support (WSSS)
  • Minimum of four beams required per section: one each top, bottom, front and back of section
  • Requires Shelf Supports to tie Beams together
  • Minimum one Shelf Support on 48”W and 60”W Beams
  • Minimum two on 72”W, 84”W and 96”W, or must use Locking Clips



Widespan Beam Profiles

Save

View product details

Product Options and Numbers

Example Part #:   WSB   48   PK4   PLT



Widespan Beam: WSB

Section Width: 48”, 60”, 72”, 84”, 96”

Beam Style: HD (Heavy Duty), Omit (Regular Duty)

Pack: PK4

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
HD -Heavy Duty Beam
PLT -Platinum

Widespan Shelf Support

Product Details

  • Available in Heavy Duty and Regular Duty
  • Rotates into place inside Beam body
  • Number of Supports required varies based on required load
View product details

Product Options and Numbers

Example Part #:   WSSS   18   PK10   PLT



Widespan Shelf Support : WSSS

Uprite Frame Depth: 18”, 24”, 30”, 36”, 42”, 48”

Beam Type: Omit (Regular Duty), HD (Heavy Duty)

Pack: PK10 (Regular Duty), PK6 (Heavy Duty)

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
HD -Heavy Duty
PLT -Platinum

Widespan Floor Anchor

Product Details

  • Heavy gauge steel angle fastens Uprite Frame to floor
  • Required when height-to-depth ratio exceeds 6 to 1
  • Use as required to meet seismic anchoring specifications
  • Uprite mounting hardware included
  • Anchor bolt not included
View product details

Product Options and Numbers

Example Part #:   WS1241   GLV



Widespan Floor Anchor: WS1241

Standard Finish:  GLV

Suffix Key
GLV – Galvanized

Widespan Beam Locking Clip

Product Details

  • Use for all beam locations other than in the top slot of the Uprite
  • Snap into Uprite slots to prevent Beam movement
  • Use at each end of Beam or where two adjacent Beams share same slot
  • Must use when not using Shelf Supports (WSSS)
View product details

Product Options and Numbers

Example Part #:   WS1291  STS



Widespan Beam Locking Clip: WS1291

Standard Finish:  STS

Suffix Key
STS – Stainless Steel
