Widespan Shelving System

Widespan includes four basic components: Uprite Frames, Beams, Shelf Supports, and Shelves. Widespan features a clear opening between Uprite Frames, and Shelves are adjustable 2″ on center.





Widespan Shelving System

Widespan includes four basic components: Uprite Frames, Beams, Shelf Supports, and Shelves. Widespan features a clear opening between Uprite Frames, and Shelves are adjustable 2″ on center.





Product Details

  • Shelves adjustable 2″ on center
  • No crossbracing required
  • Welded Uprite Frame



SIZE INFORMATION

  • Clear opening between Uprite Frames: Nominal shelf width plus 1/2”
  • Overall length: (Nominal section width plus 1/2”) times the number of sections, plus 1 3/4” for each post in the run
  • Overall depth: 2 1/4” greater than the nominal depth of the unit
  • Vertical clearance between shelves with a Regular Duty Beam: 3 1/4” less than the center-to-center shelf spacing
  • Vertical clearance between shelves with a Heavy Duty Beam: 4 3/4” less than the center-to-center shelf spacing



WARNING: Widespan Beams are intended to be used with Widespan Shelf Supports. If Shelf Supports are not installed then the beams MUST utilize one of two Widespan Multi-Function Beam Locking Clip, WS1291 or WS9111, depending on the beam location. Failure to do this could allow the Beam to become disengaged causing product damage or personal injury.



PALLET LOADED WIDESPAN CONSIDERATIONS

  • Forklifts must NOT be used, only a hand loader/stacker is safe to use
  • Order “RE” Reinforced Uprite Frames when planning to use hand loader/stacker
  • Beam locking hardware required when using hand loader/stacker
  • Shelf supports are required for all applications to stabilize beam. If not used then beam locking clip is required
  • Aisle side Uprite posts must be anchored to floor
  • Total weight of palletized goods MUST NOT exceed one half of evenly distributed Beam capacity
  • Allow at least 3” clearance between pallet and Uprite Frame, at least 4” clearance between pallets
  • Pallets should overhang both Beams by at least 2”, otherwise Particleboard or Wiregrid Shelves must be used



 WIDESPAN SHELF CAPACITY (Uniformly Distributed Load, lbs)
Section Depth  Section Width
(Beam Length)
# of Regular Duty Shelf Supports With Regular Duty Beams # of Heavy Duty Shelf Supports with Heavy Duty Beams
2 3 4
Up to 36″ D     48″ 1,600 2,400 3,000 3,000
60″ 1,600 2,400 2,400 3,000
72″ 1,600 2,000 2,400 3,000
84″ 1,600 1,800 2,000 3,000
96″ 1,600 1,600 1,600 3,000
42″ D

48″ 1,370 2,055 2,740 3,000
60″ 1,370 2,055 2,400 3,000
72″ 1,370 2,000 2,200 3,000
84″ 1,370 1,800 1,600 3,000
96″ 1,370 1,600 1,600 3,000
Up to 48″ D
48″ 1,200 1,800 2,400 3,000
60″ 1,200 1,800 2,400 3,000
72″ 1,200 1,800 2,000 3,000
84″ 1,200 1,700 1,800 3,000
96″ 1,200 1,600 1,600 3,000



How to Order

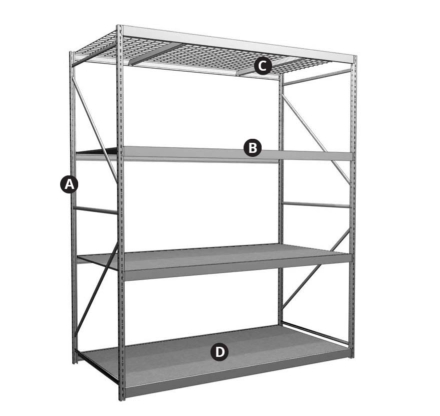

Widespan-System-Assembly-Labeled-Lozier

COMPONENTS (ORDER SEPARATELY):

A – Uprite Frame
B – Beam
C – Shelf Support
D – Shelf
E – Beam Locking Clip or Hardware (not pictured)

Widespan Uprite Frame (One-Piece 48"H - 120"H)

Product Details

  • One-piece Uprite Frames for units 48” – 120”
  • Uprite post slotted on face, allows shelf adjustment 2” on center
  • Square holes punched on sides of Uprite post for accessories
  • Accessory holes punched 6” on center on face of Uprite also aid beam placement
  • Top Caps included on each Uprite
  • One Frame required for each section, plus one at end of each run
  • To provide increased protection under harsh shipping conditions add “SPC” to part number for additional packaging
  • Floor Anchors, Floor Protectors, or Back to Back Connectors may be ordered separately
  • Evenly distributed load of 10,000 lbs per Uprite Frame at 48″ max. Beam spacing, vertically



REINFORCED UPRITE FRAME

  • “RE” Frame available in 72” – 120”H and all depths (lower Frame only on 132” – 192”)
  • For use with hand loader/stacker
  • Reduces chance of Frame damage
  • Channel welded inside each post in lower 48”
  • Welded foot plate for anchoring, 1/2” hole



widespan reinforced uprite frame

Save

View product details

Product Options and Numbers

Example Part #:   WSU   18    048   RE   SPC   PLT



Widespan Uprite : WSU

Depth: 18”, 24”, 30”, 36”, 42”, 48”

Height: 048”, 060”, 072”, 084”, 096”, 120”

Reinforced Uprite for Hand Loader/ Stacker Applications: RE, Leave blank if not applicable

Additional Packaging: SPC, Leave blank if not applicable

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
PLT -Platinum

Widespan Two-Piece Uprite Frame (Taller than 120")

Product Details

  • Uprite post slotted on face, allows shelf adjustment 2” on center
  • Square holes punched on sides of Uprite post for accessories
  • Accessory holes punched 6” on center on face of Uprite also aid beam placement
  • Top Caps included on each Uprite
  • One Widespan Uprite Frame required for each section, plus one at end of each run
  • To provide increased protection under harsh shipping conditions add “SPC” to part number for additional packaging
  • Floor Anchors, Floor Protectors, or Back to Back Connectors may be ordered separately
  • Two-piece Widespan Uprite Frame provides same rated load as One-Piece Widespan Uprite
  • Evenly distributed load of 10,000 lbs per Uprite Frame at 48″ max. Beam spacing, vertically



REINFORCED UPRITE FRAME

  • “RE” Frame available in 72” – 120”H and all depths (lower Frame only on 132” – 192”)
  • For use with hand loader/stacker
  • Reduces chance of Frame damage
  • Channel welded inside each post in lower 48”
  • Welded foot plate for anchoring, 1/2” hole



widespan reinforced uprite frame

Save

View product details

Product Options and Numbers

Widespan-Two-Piece-Uprite-Exploded-Labeled-Lozier

COMPONENTS (ORDER SEPARATELY):

A – Widespan Uprite Frame (lower)
B – Widespan Uprite Connectors
C – Widespan Uprite Frame (upper)

STANDARD WIDESPAN FRAME
“_” specify Widespan depth
HEIGHT LOWER UPPER CONNNECTOR
132″ WSU_072 WSU_060 WSUC (2 required)
 144″ WSU_072 WSU_072 WSUC (2 required)
156″ WSU_084 WSU_072 WSUC (2 required)
168″ WSU_096 WSU_072 WSUC (2 required)
192″ WSU_096 WSU_096 WSUC (2 required)
REINFORCED WIDESPAN FRAME (LOWER)
“_” specify Widespan depth
HEIGHT LOWER UPPER CONNNECTOR
132″ WSU_072RE WSU_060 WSUC (2 required)
 144″ WSU_072RE WSU_072 WSUC (2 required)
156″ WSU_084RE WSU_072 WSUC (2 required)
168″ WSU_096RE WSU_072 WSUC (2 required)
192″ WSU_096RE WSU_096 WSUC (2 required)

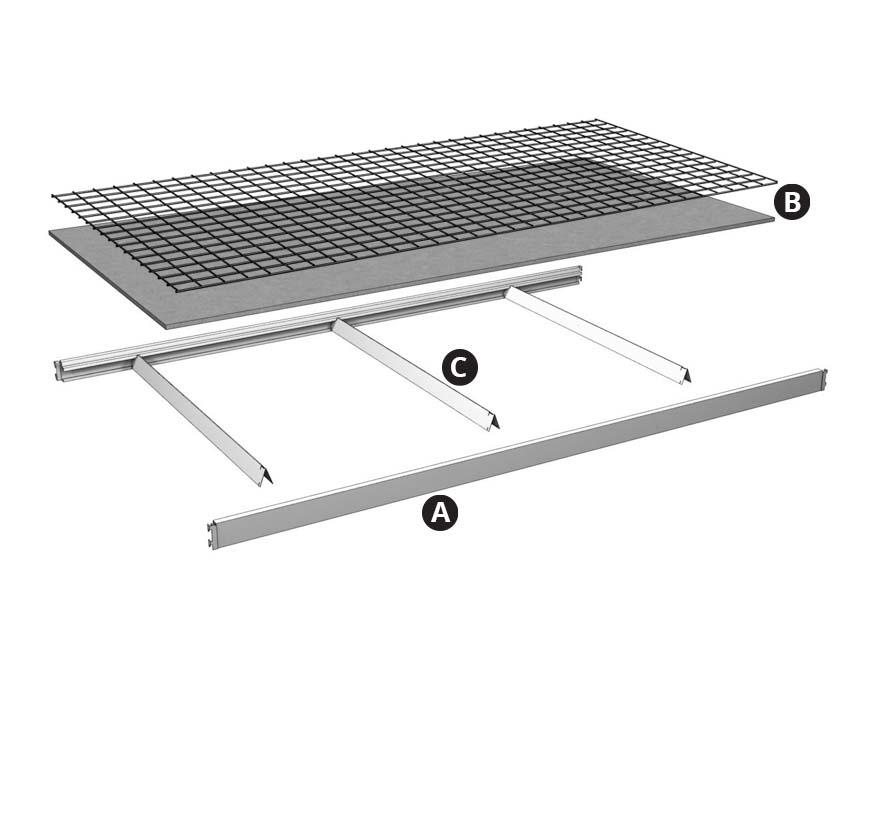

Widespan Beam

Product Details

  • Available in both Heavy Duty and Regular Duty
  • Integral Beam connectors
  • Tilt-in design, no fasteners or locking clips required when used with Shelf Support (WSSS)
  • Minimum of four beams required per section: one each top, bottom, front and back of section
  • Requires Shelf Supports to tie Beams together
  • Minimum one Shelf Support on 48”W and 60”W Beams
  • Minimum two on 72”W, 84”W and 96”W, or must use Locking Clips



Widespan Beam Profiles

Save

View product details

Product Options and Numbers

Example Part #:   WSB   48   PK4   PLT



Widespan Beam: WSB

Section Width: 48”, 60”, 72”, 84”, 96”

Beam Style: HD (Heavy Duty), Omit (Regular Duty)

Pack: PK4

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
HD -Heavy Duty Beam
PLT -Platinum

Widespan Shelf Support

Product Details

  • Available in Heavy Duty and Regular Duty
  • Rotates into place inside Beam body
  • Number of Supports required varies based on required load
View product details

Product Options and Numbers

Example Part #:   WSSS   18   PK10   PLT



Widespan Shelf Support : WSSS

Uprite Frame Depth: 18”, 24”, 30”, 36”, 42”, 48”

Beam Type: Omit (Regular Duty), HD (Heavy Duty)

Pack: PK10 (Regular Duty), PK6 (Heavy Duty)

Standard Finish:  PLT, Optional Catalog Colors

Suffix Key
HD -Heavy Duty
PLT -Platinum

Widespan Particleboard Shelf

Product Details

  • Fits both Regular Duty and Heavy Duty Beams
  • Heavy Duty Shelf only
  • 5/8” industrial grade particleboard
  • Seal coat finish available for additional durability and stain resistance
  • Evenly distributed load up to 3,000 lbs (Dependent on Beam style and number of Shelf Supports)
View product details

Product Options and Numbers

Example Part #:   WSPB   18    96   HD   N/A



Widespan Particleboard Shelf : WSPB

Section Depth: 18”, 24”, 30”, 36”, 42”, 48”

Section Width: 48”, 60”, 72”, 84”, 96

Heavy Duty: HD

Standard Finish:  N/A, S04

Suffix Key
N/A -No Finish
 S04 -Seal Coated

Widespan Wire Grid Shelf

Product Details

  • Fits both Regular Duty and Heavy Duty Beams
  • 3 X 3 heavy gauge wire mat
  • One-piece construction on all sizes
  • Continuous perimeter wire
  • Fireproof
  • Provides for: light penetration, water flow through for sprinklers and cleanliness
  • Available in zinc coated wire
  • Evenly distributed load up to 3,000 lbs (Dependent on Beam style and number of Shelf Supports)
View product details

Product Options and Numbers

Example Part #:   WSWG   18    96   ZNC



Widespan Wire Grid Shelf : WSWG

Section Depth: 18”, 24”, 30”, 36”, 42”, 48”

Section Width: 48”, 60”, 72”, 84”, 96

Standard Finish:  ZNC

Suffix Key
ZNC -Zinc Wire

Widespan Beam Locking Clip

Product Details

  • Use for all beam locations other than in the top slot of the Uprite
  • Snap into Uprite slots to prevent Beam movement
  • Use at each end of Beam or where two adjacent Beams share same slot
  • Must use when not using Shelf Supports (WSSS)
View product details

Product Options and Numbers

Example Part #:   WS1291  STS



Widespan Beam Locking Clip: WS1291

Standard Finish:  STS

Suffix Key
STS – Stainless Steel

Widespan Beam Locking Hardware

Product Details

  • For use on beam levels at the top slot of Uprite
  • Bolt on to Uprite to prevent Beam movement
  • Use at each end of Beam or two adjacent Beams in same slot
  • Must be used when not using Shelf Supports (WSSS)
View product details

Product Options and Numbers

Example Part #:   WS9111  N/A



Widespan Beam Locking Hardware: WS9111

Standard Finish:  N/A

Suffix Key
N/A – No Finish
